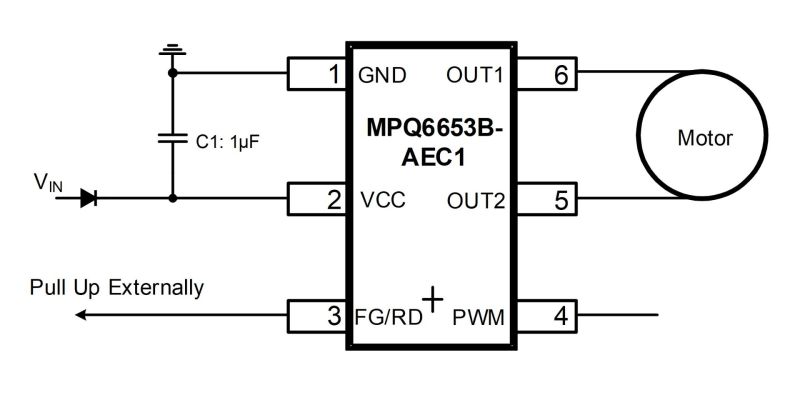

The MPQ6653B-AEC1 is a single-phase brushless DC (BLDC) motor driver with integrated power MOSFETs and an embedded Hall sensor. It drives a single-phase BLDC motor, with up to 1.2A of peak coil current. The wide input voltage (V_IN) range spans 3.5V to 35V.

Either the pulse-width modulation (PWM) signal or the DC voltage applied on the PWM pin can control the motor speed. The device features configurable soft commutation, a Hall offset angle, and speed curve configurations.

The FG/RD pin acts as either a rotating speed indicator (FG) based on the embedded Hall sensor’s output, or a locked-rotor indicator (RD) if locked-rotor protection is triggered.

Rich protections include input over-voltage protection (OVP), under-voltage lockout (UVLO), locked-rotor protection, over-current protection (OCP), and thermal shutdown protection.

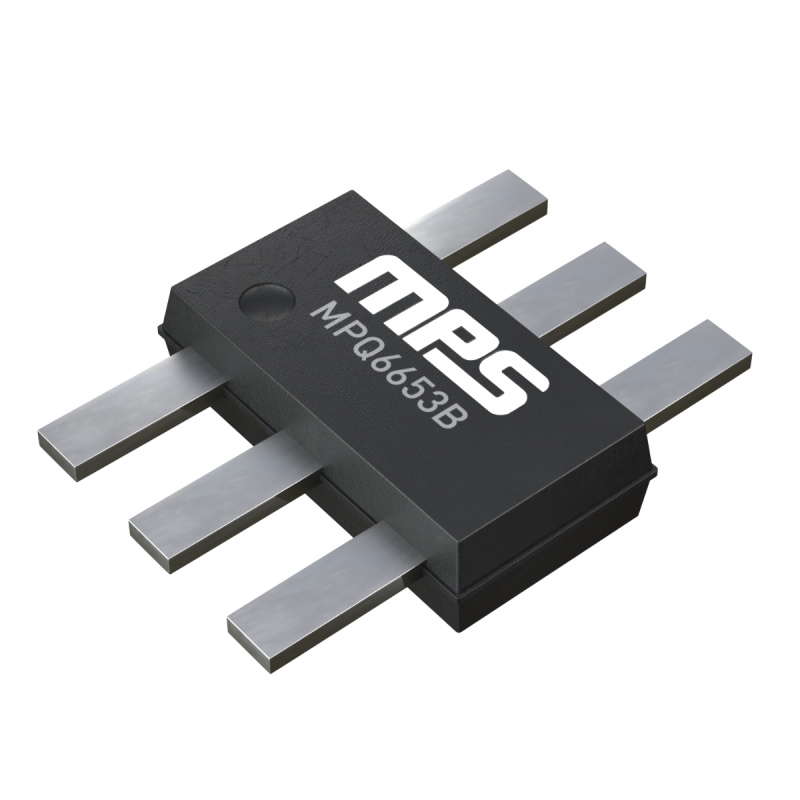

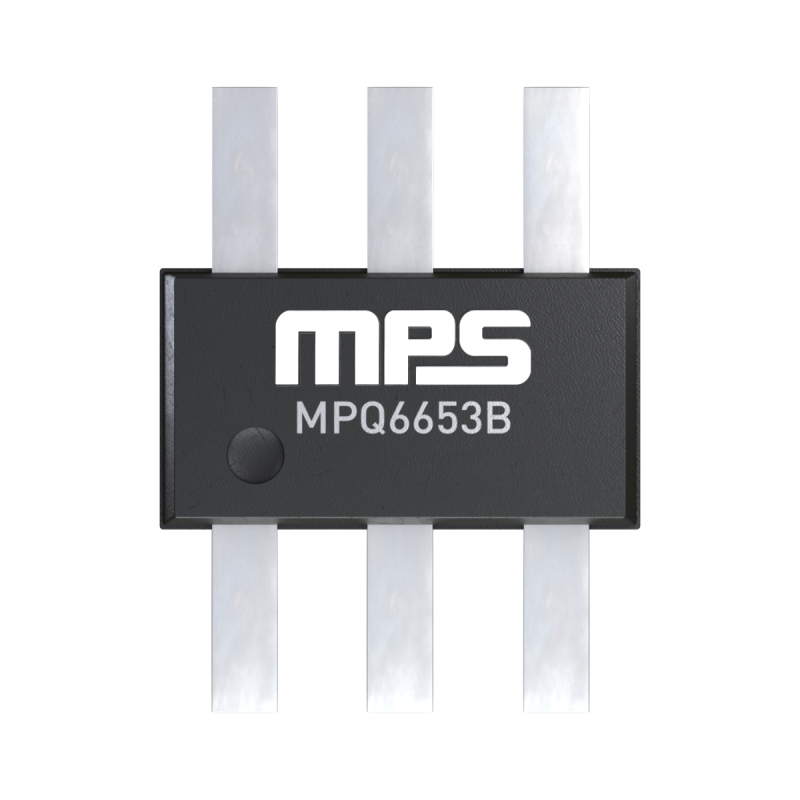

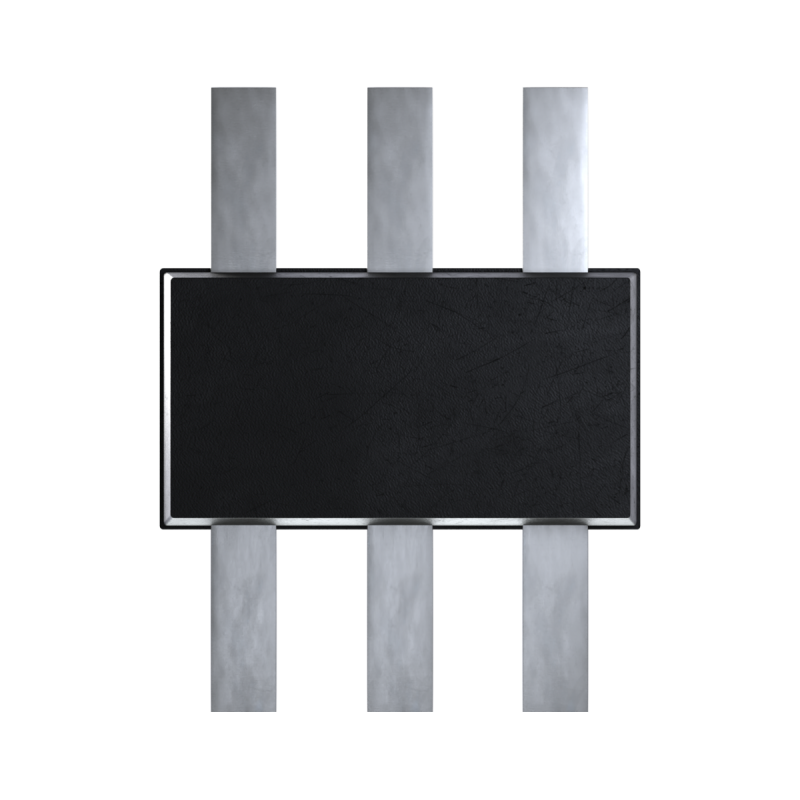

The MPQ6653B-AEC1 is available in a TSOT23-6-SL package, and is available in AEC-Q100 Grade 1.
