MPQ70156FS-AEC1

MPQ70156FS-AEC1

MPSafe^TM, ASIL-B, 6V, 3A, PMIC with Buck Converter and 1-Channel Window Voltage Monitor, AEC-Q100 Qualified

详情

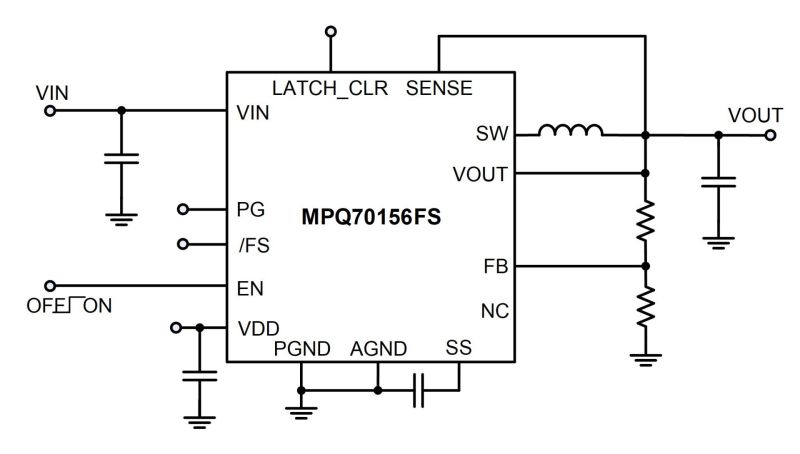

The MPQ70156FS-AEC1 is an ASIL-B hardware-capable PMIC featuring a buck converter and a single-channel window voltage supervisor (monitor). The device features a monolithic, step-down switch-mode converter with built-in internal power MOSFETs. It provides 1A to 3A of continuous output current (I_OUT) from a 2.7V to 6V input voltage (V_IN) range, with excellent load and line regulation. The output voltage (V_OUT) can be regulated to as low as 0.7V.

Constant-on-time (COT) control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

The single-channel window voltage supervisor (monitor) monitors a voltage rail ranging from 0.7V to 5V. With high accuracy (±0.9%) and fast detection time, this voltage monitor is well-suited to continuously monitor point-of-load (PoL) voltage rails for over-voltage (OV) and under-voltage (UV) conditions.

With the integration of sophisticated functional safety features, including built-in self-test (BIST), diagnostics, and redundant reference voltage, the MPQ70156FS-AEC1 is targeted to support applications with a high automotive safety integrity level (ASIL) up to ASIL-B.

The MPQ70156FS-AEC1 requires a minimal number of external components, and is available in a QFN-16 (2.5mmx3.5mm) package. It is AEC-Q100 qualified.

产品特性和优势

Designed for Automotive Applications:
- Wide 2.7V to 6V Operating Input Voltage (V_IN and V_DD) Range
- 1A to 3A Continuous Output Current (I_OUT) Version in Pin-Compatible Family
- ± 1.5% Feedback (FB) Accuracy across Full Temperature Range
- -40°C to +150°C Operating Junction Temperature (T_J)
- Available in AEC-Q100 Grade 1
Minimizes Power Consumption:
- Advanced Asynchronous Modulation (AAM) Mode for Increased Efficiency under Light-Load Conditions
- 21μA Sleep Mode Quiescent Current (I_Q)
Optimized for EMC and EMI Reduction:
- 2.4MHz Fixed Switching Frequency (f_SW) in Forced Continuous Conduction Mode (FCCM)
- Frequency Spread Spectrum (FSS) Modulation
- MeshConnect^TM Flip-Chip Package
Reduces Board Size and BOM:
- Integrated Compensation Network
- Available in a Wettable Flank QFN-16 (2.5mmx3.5mm) Package

Additional Features:

Power Good (PG) Indicator
100% Duty Cycle On
External Soft Start (SS) Control
Output Discharge
Output Over-Voltage Protection (OVP)
Short-Circuit Protection (SCP) with Hiccup Mode
1x Window Voltage Monitor
0.7V to 5V Voltage Threshold Range
±0.9% (Max) Threshold Accuracy
±0.5, 1%, or 2% Hysteresis Options
Over-Voltage (OV) or Under-Voltage (UV) Only Sensing Types

Functional Safety:

ISO 26262 ASIL-B Hardware Capable
Built-In Self-Test (BIST)
Redundant Reference Voltage
Output Failsafe Pin with Latch

正在供货产品型号

MPQ70156FSGRHE-xxxxAEC1-Z MPQ70156FSGRHE-xxxxAEC1-P MPQ70156FSGRHE-0000AEC1-Z MPQ70156FSGRHE-0000AEC1-P
