MPQ70244FS-AEC1

MPQ70244FS-AEC1

MPSafe^TM, ASIL-B, 18V, 4-Channel PMIC with 3 Bucks and 1 LDO, Enhanced PMBus Interface Logic, AEC-Q100 Qualified

详情

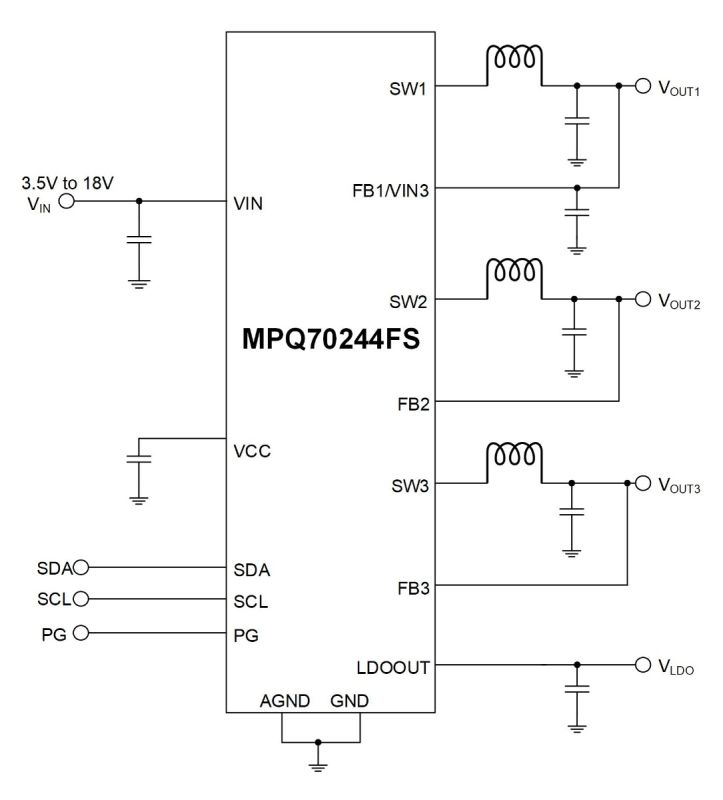

The MPQ70244FS-AEC1 is a power management IC (PMIC) solution integrating three high-efficiency, step-down DC/DC converters and a low-noise low-dropout (LDO) regulator. Its dual-stage, 18V buck architecture maximizes efficiency for the 1.8V image sensor input/output (I/O) rail in the complementary metal oxide semiconductor (CMOS) sensor in high-resolution camera modules.

Constant-on-time (COT) control with phase-locked loop (PLL) provides a fast transient response time. During continuous conduction mode (CCM), the fixed 2.2MHz switching frequency (f_SW) greatly reduces external inductor and capacitor size.

The PMBus interface allows for application flexibility. The output voltage (V_OUT), power sequence, and protection thresholds can all be adjusted via the interface. Fault statuses can also be monitored. Protection features include under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown (TSD).

The MPQ70244FS-AEC1 features enhanced PMBus interface logic, which is recommended for systems using one of its own outputs as a pull-up for its PMBus interface.

The MPQ70244FS-AEC1 supports applications with a high automotive safety integrity level up to ASIL-B. Functional safety features include analog built-in self-testing (ABIST), diagnostics, and a power good (PG) output pin. The MPQ70244FS-AEC1 is developed under MPS’s advanced MPSafe^TM functional safety product development process, which has been independently certified to meet ISO 26262 guidelines.

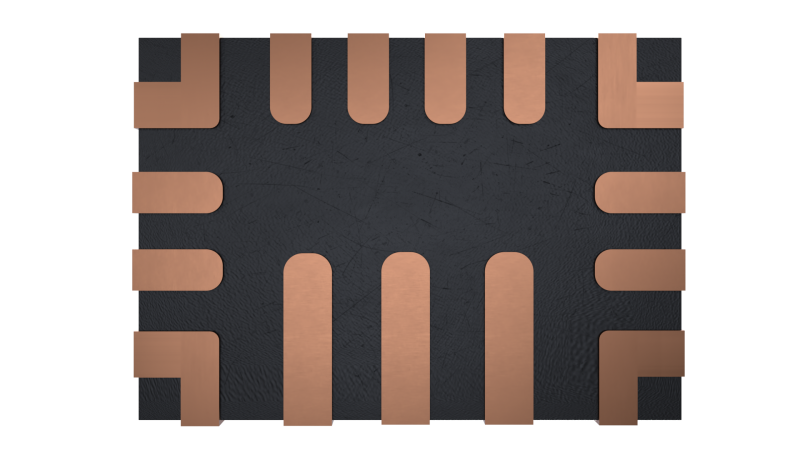

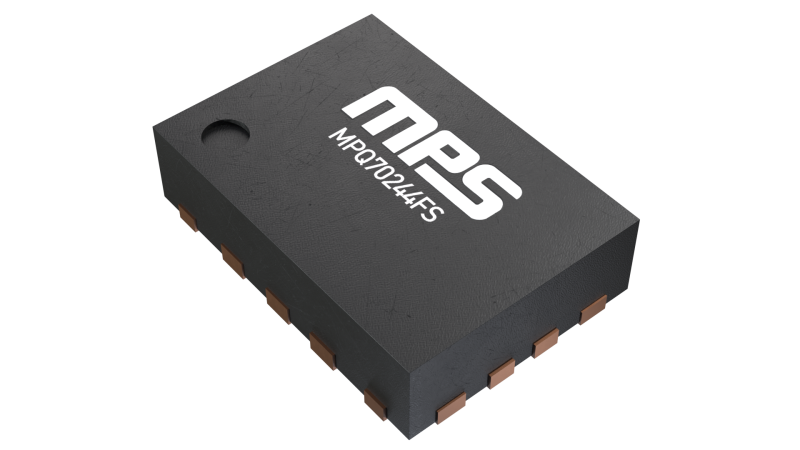

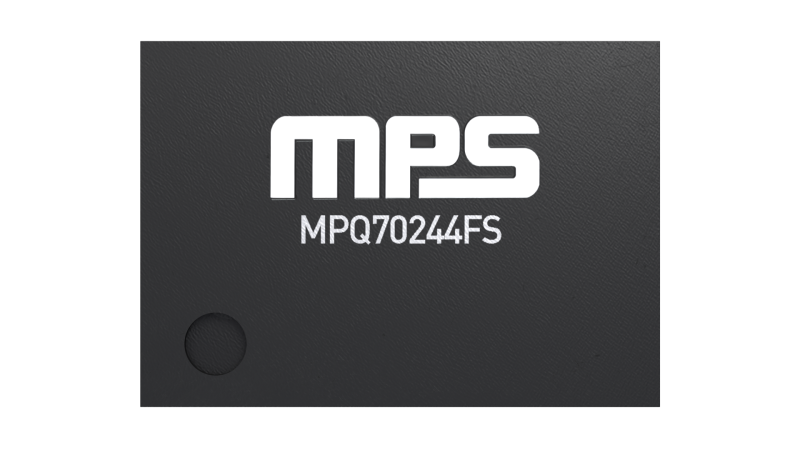

The MPQ70244FS-AEC1 minimizes the external component count and is available in a space-saving QFN-15 (2.5mmx3.5mm) package with wettable flanks. It is available in AEC-Q100 Grade 1.

产品特性和优势

Designed for Automotive Cameras:
- Buck 1: 600mA with 3.5V to 18V Input
- Buck 2: 600mA with 3.5V to 18V Input
- Buck 3: 1A Buck with 2.5V to 4V Input
- Low-Dropout (LDO) Regulator: 200mA for Large CMOS Sensors
- Adjustable Output Voltage (V_OUT) via Registers
- PMBus Interface with Packet Error Checking (PEC)
- Junction Temperature (T_J) Rating of -40°C to +150°C
- Available in a QFN-15 (2.5mmx3.5mm) Package with Wettable Flanks
- Available in AEC-Q100 Grade 1
Optimized for EMC/EMI:
- 2.2MHz Fixed Switching Frequency (f_SW)
- Stepped Triangle Spread Spectrum with On/Off Function
- Symmetric Input Capacitor for Reduced EMI
Comprehensive Protection Features:
- Over-Voltage Protection (OVP)
- Under-Voltage Protection (UVP)
- Over-Current Protection (OCP)
- Thermal Shutdown/Warning Protection
- Power Good (PG) Output
Functional Safety:
- Hardware Capable to ASIL-B
- Integrated Analog Built-In Self-Testing (ABIST) and Reference Monitor
- Documents Available to Aid ISO 26262 System Design
- Failure Modes, Effects, and Diagnostic Analysis (FMEDA)
  Safety Manual

正在供货产品型号

MPQ70244FSGRHE-xxxxAEC1-Z MPQ70244FSGRHE-xxxxAEC1-P MPQ70244FSGRHE-0000AEC1-Z MPQ70244FSGRHE-0000AEC1-P

P&Z的含义

相关产品

EVQ70244FS-RH-00A MPSafe^TM, ASIL-B, 18V, 4-Channel PMIC with 3 Bucks and 1 LDO, Enhanced PMBus Logic Evaluation Board, AEC-Q100 Qualified

The EVQ70244FS-RH-00A is an evaluation board designed to demonstrate the capabilities of the MPQ70244FS-AEC1, a power management IC (PMIC) solution that integrates three high-efficiency, step-down DC/DC converters and a low-noise, low-dropout (LDO) regulator.

The MPQ70244FS-AEC1 uses a unique, dual-stage, 18V buck architecture that maximizes efficiency for the 1.8V image sensor input/output (I/O) rail in the complementary metal oxide semiconductor (CMOS) sensor in high-resolution camera modules.

Constant-on-time (COT) control with phase-locked loop (PLL) provides fast transient response time. The MPQ70244FS-AEC1 supports a 2.2MHz fixed switching frequency (f_SW).

The MPQ70244FS-AEC1 supports a PMBus interface for application flexibility. In addition, fault statuses can be monitored. Fault protections include input under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown. A one-time programmable (OTP) memory is provided to preset these functions.

The MPQ70244FS-AEC1 supports applications with a high automotive safety integrity level, up to ASIL-B. Functional safety features include analog built-in self-testing (ABIST), diagnostics, and a power good (PG) output pin. The MPQ70244FS-AEC1 is developed under MPS's advanced MPSafe^TM functional safety product development process, which has been independently certified to meet ISO 26262 guidelines.

The EVQ70244FS-RH-00A is a fully assembled and tested evaluation board. The MPQ70244FS-AEC1 is available in a QFN-15 (2.5mmx3.5mm) package with wettable flanks, and is available in AEC-Q100 Grade 1.
