MPQ7936-AEC1

MPQ7936-AEC1

5V PMIC with 4 Buck Converters (2A/2.5A/4.5A/4.5A), 4 LDOs, and Flexible System Settings via the I²C and MOTP, AEC-Q100 Qualified

详情

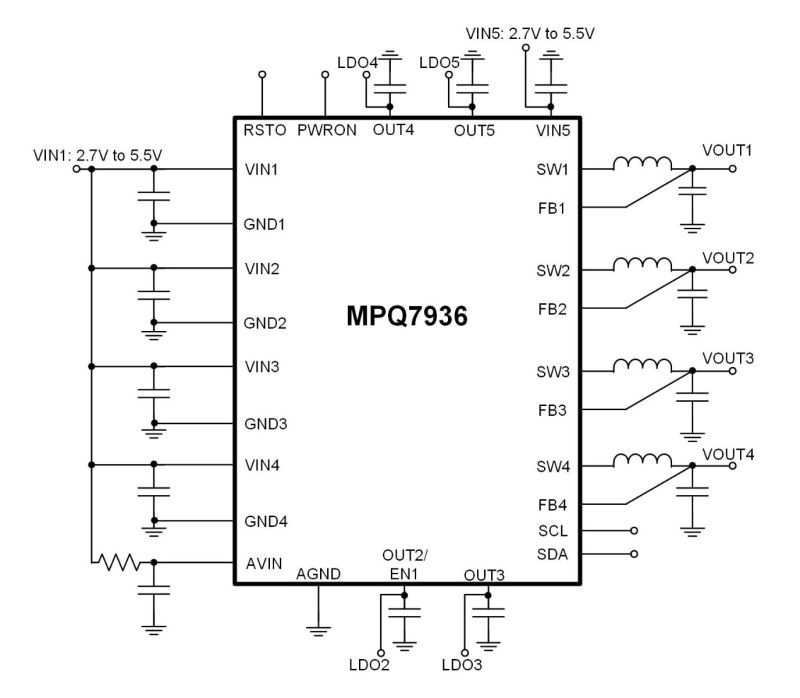

The MPQ7936-AEC1 is a complete power management solution that integrates four high-efficiency step-down DC/DC converters, four low-dropout (LDO) regulators, and a flexible logic interface.

Constant-on-time (COT) control in the DC/DC converter provides fast transient response. The 2.2MHz fixed switching frequency (f_SW) in continuous conduction mode (CCM) greatly reduces the external inductance and capacitance. Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown.

The I²C interface offers flexibility through configurability. The output voltage (V_OUT), power-on/power-off sequence, and dynamic voltage scaling (DVS) settings are all adjustable via this digital interface. The multiple one-time programmable (MOTP) memory allows for pre-set values from the factory and soft-start configurability for the bucks.

Protection features include over-voltage protection (OVP) and over-current protection (OCP) for the bucks. The MPQ7936-AEC1 also features thermal warning and shutdown.

The MPQ7936-AEC1 requires a minimal number of external components, and is available in a TLGA-29 (4.5mmx4.5mm) package. It is available in AEC-Q100 Grade 1.

产品特性和优势

Designed for Automotive Applications:
- 2.7V to 5.5V Operating Input Voltage (V_IN) Range
- -40°C to +150°C Junction Temperature (T_J) Rating
- Available in AEC-Q100 Grade 1
Reduced Board Size and BOM:
- 2x 4.5A Buck Converters
- 1x 2.5A Buck Converter
- 1x 2A Buck Converter
- 2x 300mA Low-Dropout (LDO) Regulators
- 2x 550mA LDO Regulators
- Optional Parallel Operation for Buck 1/3 and Buck 2/4
- Adjustable Output via Registers
- Available in a TLGA-29 (4.5mmx4.5mm) Package

Optimized for EMC/EMI:

2.2MHz Switching Frequency (f_SW)
Adjustable Phase Delay

Additional Features:

Adjustable Soft-Start Time (t_SS) in Bucks
Forced Continuous Conduction Mode (FCCM)
Output Over-Current Protection (OCP) and Over-Voltage Protection (OVP) for Buck Regulators
I²C Bus and User-Configurable Multiple One-Time Programmable (MOTP) Memory
Two-Time Configurable MOTP
Multi-Function LDO2/EN1 Pin
Power-On Reset (POR) Output
Flexible Power-On/Power-Off Sequence
