MPQ73351FS-AEC1

MPQ73351FS-AEC1

MPSafe^TM ASIL-D, 40V, High Output Current, Synchronous, Dual Buck Converter, AEC-Q100 Qualified

详情

The MPQ73351FS-AEC1 is an ASIL-D, high output current (I_OUT), synchronous, dual buck converter designed for automotive safety applications. It has a wide input voltage (V_IN) range, fast transient response, high efficiency, rich monitoring and protection features, and good EMI performance.

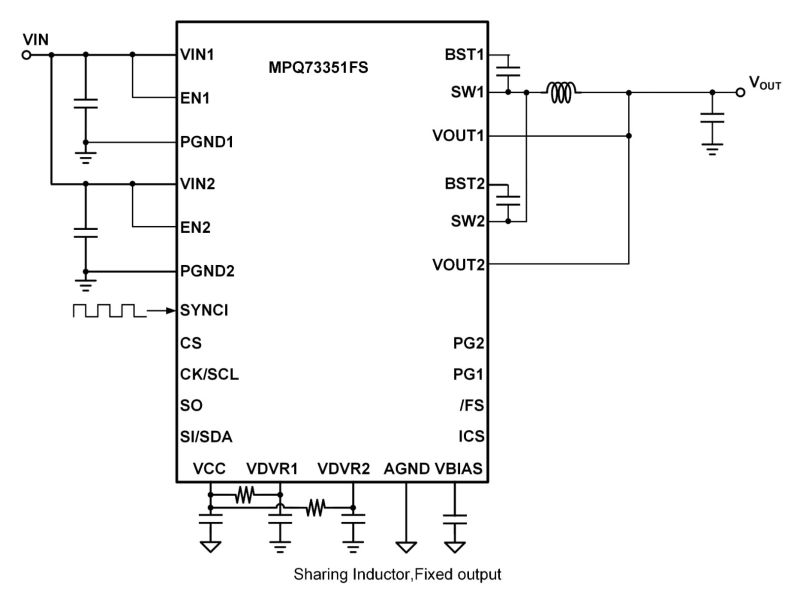

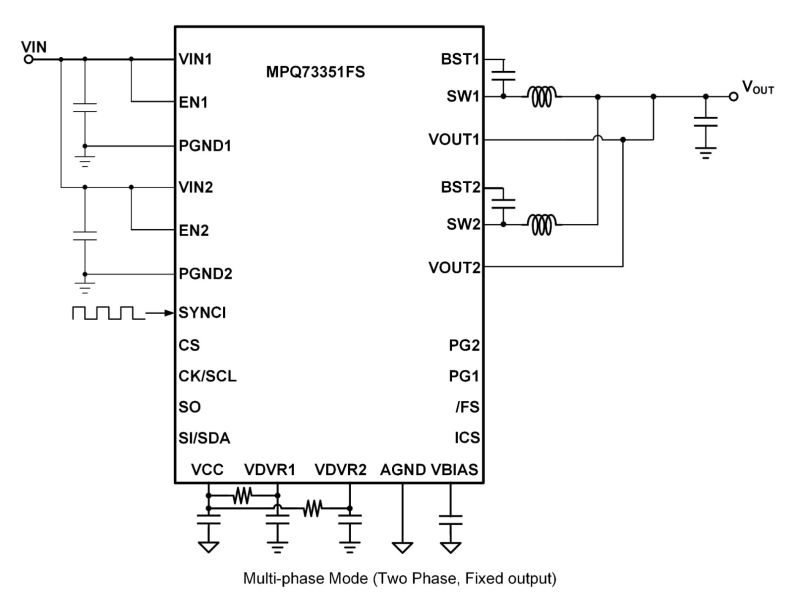

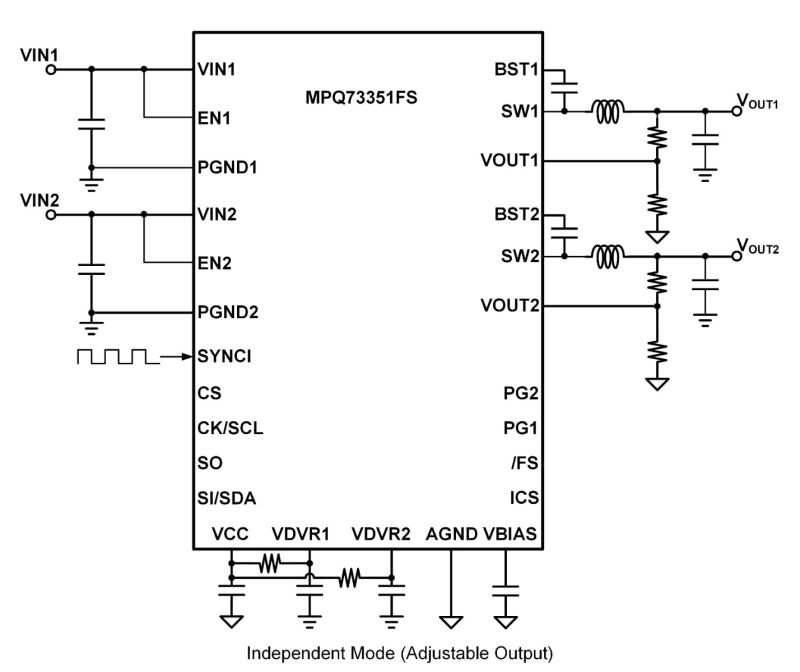

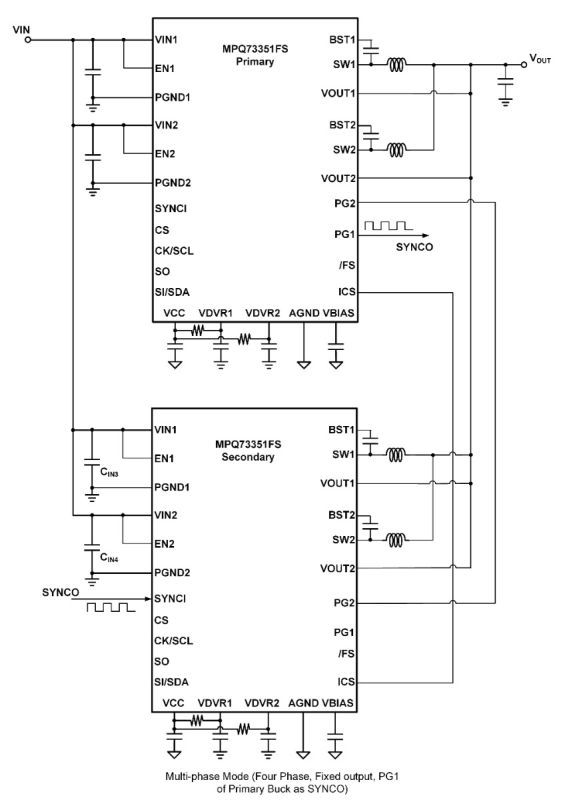

The device can be selected to operate in either 2-channel mode or single-output multi-phase mode. For 2-channel mode, I_OUT for each buck is up to 7A with the capability for 12A with a heatsink. Multiple MPQ73351FS-AEC1 chips in parallel can also support four-phase or eight-phase modes.

The switching frequency (f_SW) is configurable from 200kHz to 2.2MHz, or it can be synchronized with an external clock signal. Frequency spread spectrum (FSS) is featured to improve EMI performance.

Comprehensive protection features include input under-voltage lockout (UVLO), input over-voltage protection (OVP), cycle-by-cycle peak current limiting, output OVP, output short-circuit protection (SCP), and thermal shutdown. Different configurations can easily be configured via the selectable SPI or I²C interface. The one-time programmable (OTP) memory allows for vast flexibility through programmability.

The MPQ73351FS-AEC1 is available in a TQFN-28 (5mmx6mm) package, and is available in AEC-Q100 Grade 1.

产品特性和优势

High Output Power (P_OUT) Capability:
- 14A or 24A (with Heatsink) Parallel Channels
- 7A or 12A (with Heatsink) per Channel
- Multi-Chip, Multi-Phase Capability
Built for Automotive Applications:
- Load Dump Up to 40V
- Cold Crank Down to 3V
- Wide Output Voltage (V_OUT) Range
- V_OUT Up to 9V with Internal Feedback (FB) Divider
- V_OUT Up to 15V with External FB Divider
- Low Quiescent Current (I_Q) and Shutdown Current (I_SD)
- Zero-Delay PWM^TM (ZDP^TM) Control
Optimized for EMI/EMC:
- Frequency Spread Spectrum (FSS)
- 200kHz to 2.2MHz Switching Frequency (f_SW)
- Quiet-FET^TM Switching Technology
- CISPR 25 Class 5 Compliant
- Mesh-Connect^TM Flip-Chip Package

Advanced Monitoring and Protection Features:

Windowed Watchdog Timer
8-Bit SAR ADC Monitors Output Current (I_OUT), V_OUT, Input Voltage (V_IN), and Temperature
Cycle-by-Cycle Current Limit
Input/Output Over-Voltage Protection (OVP)
Output Short-Circuit Protection (SCP)
Thermal Shutdown (TSD)

Achieve Functional Safety Goals:

MPSafe^TM Certified to ISO 26262 ASIL-D
Built-In Self-Testing (BIST)
Bandgap Redundancy
Realtime Register Cyclic Redundancy Check (CRC)
Protected Memory and Registers

Additional Features:

Internal Soft Start (SS)
Clock Synchronization
Power Good (PG) Indicators
Selectable Advanced Asynchronous Modulation (AAM) Mode or Forced Continuous Conduction Mode (FCCM)
SPI/I²C Interface w/ Optional CRC
One-Time Programmable (OTP) Memory
Available in a TQFN-28 (5mmx6mm) Package with Wettable Flanks
Available in AEC-Q100 Grade 1

正在供货产品型号

MPQ73351FSGQJTE-xxxxAEC-Z MPQ73351FSGQJTE-xxxxAEC-P MPQ73351FSGQJTE-0000AEC-Z MPQ73351FSGQJTE-0000AEC-P

P&Z的含义

相关产品

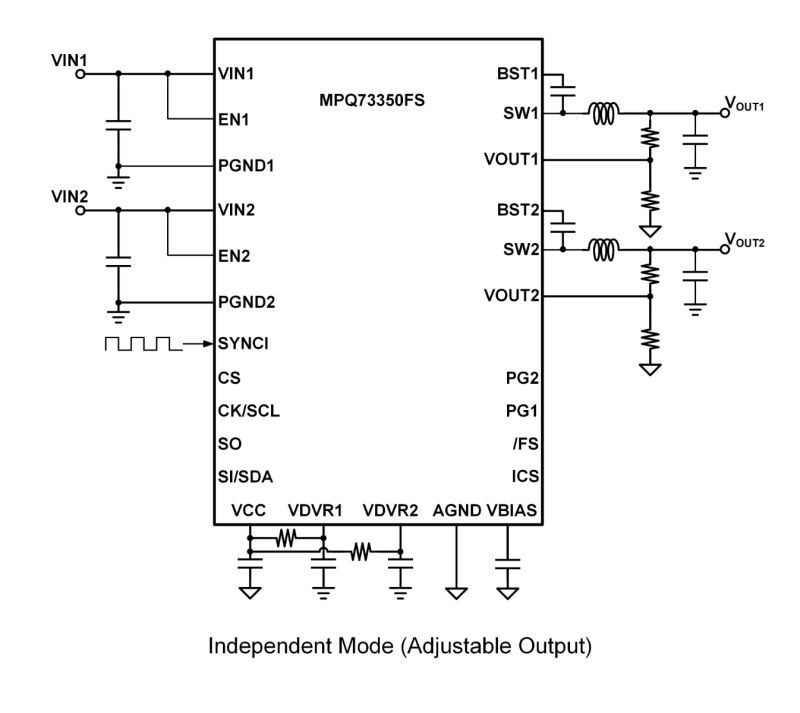

MPQ73350FS-AEC1 采用 MPSafe^TM、40V、高输出电流、同步双降压变换器，符合 AEC-Q100 认证
